| Model | DH12 | DH15 |
| Pixel Pitch(mm) | 1.2 | 1.5 |
| Module Resolution(W x H) | 120x270 | 96x216 |
| Module Size(mm) | 150(W)×337.5(H) | |
| Cabinet Resolution | 480×270 | 348×216 |

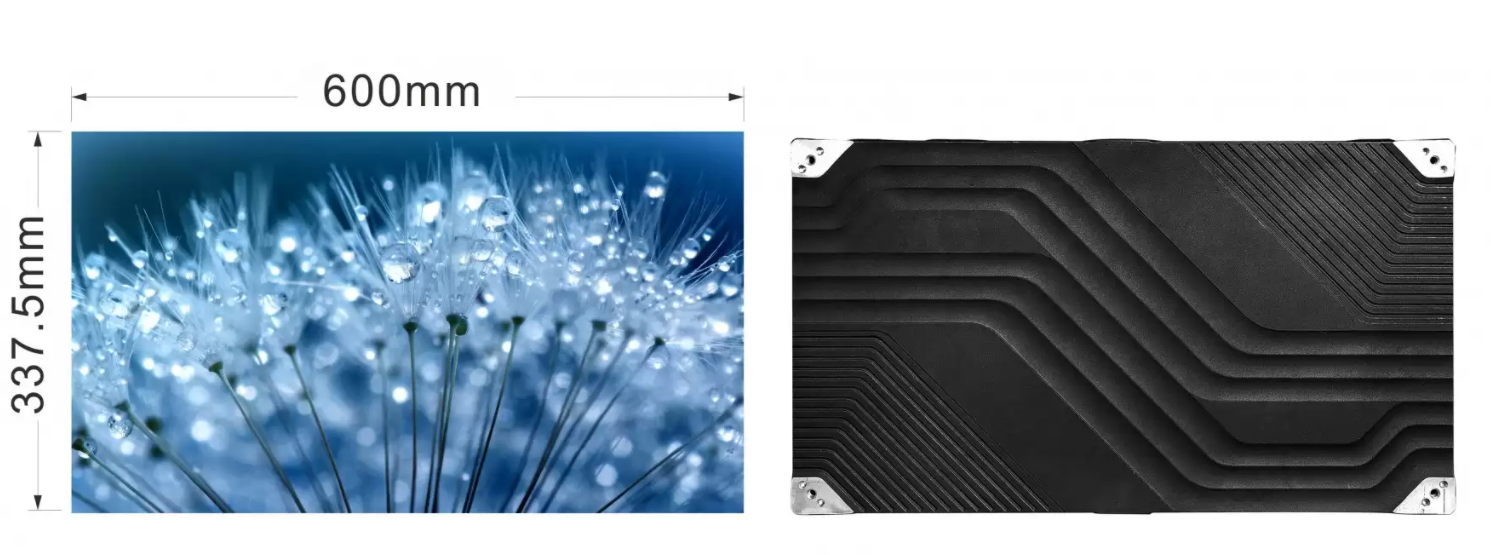

| Cabinet Size(mm) | 600(W)×337.5(H)×40(D) | |
| Cabinet Area(m?) | 0.2025 | |
| Cabinet Weight (kg) | ≤6.5 | |
| Physical Density(pixel/m?) | 640,000 | 409,600 |
| LED Type | 1010 | 1010 |

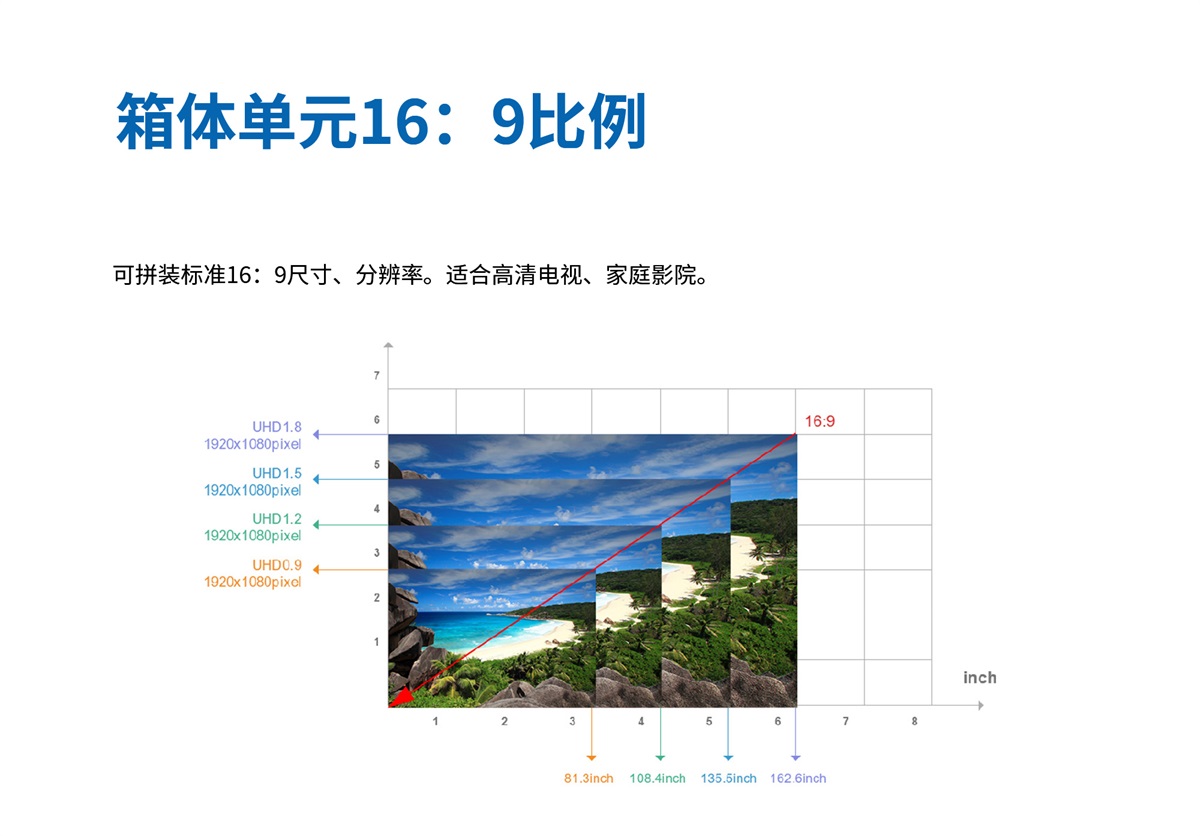

| W:H | 16:9 | |
| Cabinet flatness (mm) | ≤0.1 | |

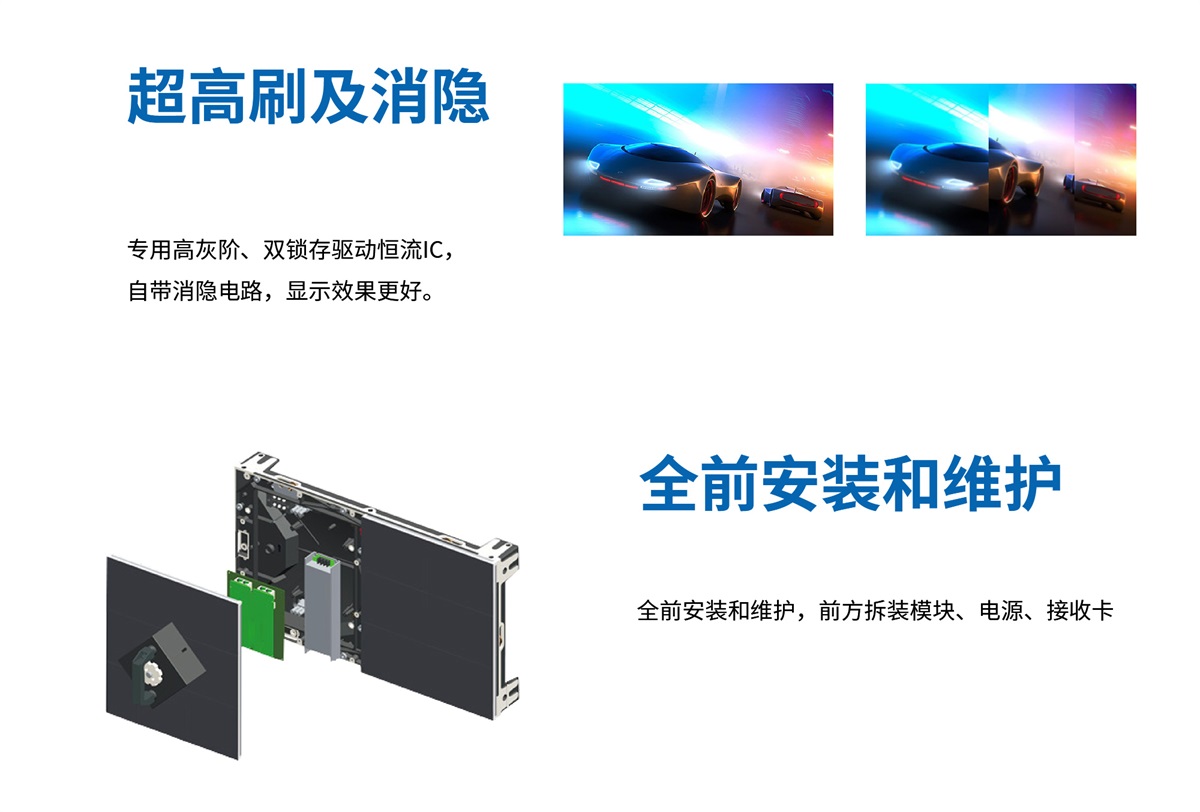

| Maintenance mode | Frontal Maintenance | |
| Protection Grade | ≥IP5X | |
| Material | Die-cast aluminum / aluminum-magnesium alloy | |
| Brightness (nits) | 500 0-1000 adjustable,factory standard 500 | |
| Color Temperature(K) | 500 ~ 10000 adjustable | |
| View Angle | ≥160°(W&H) | |
| Center distance devlation of luminous point |
＜1％ |
|
| Brightness Uniformity | ≥97% | |
| Color Uniformity | ≤±0.003Cx,Cy | |
| Max. Contrast | ≥7000:1 | |
| Working Consumption (w/㎡) | ≤150 | |
| Max Power Consumption (w/m?) | ≤650 | |
| Input Power Consumption(w/m?) | ≥820 | |
| Input Voltage | 220VAC ±5％ | |
| Frame Frequency（Hz） | 30 - 120 | |
| Refresh Frequency（Hz） | ≥3840 | |
| Grey Scale（bits） | 14-18 | |
| Brightness control | Manual / Auto | |
| Lifespan(h) | ≥100，000hrs | |
| Working/Store Temperature(°C) | -10°C ~ 40°C / -20°C ~50°C | |
| Working/Store Humidity(RH) | 10~60％ / 10~60％ | |
